Change the look and feel of your home, office, cottage or boat with the flick of a switch.

Learn more about the benefits of Smart-Film

Smart Film also known as PDLC Film provides Instant and precise privacy control
Efficient use of space in the built environment
Smart Film blocks 98+% of damaging UV rays
Eco friendly product
Exceptional optical qualities that reduce glare and eye strain
Large sizes of many shapes can be produced
Our Smart Film provides stable colour characteristics for the life of the unit
Aesthetically pleasing
Hygienic low maintenance reducing the transmission of MRSA and VRE pathogens
Smart Film enhances corporate image
Reduces uncomfortable “Gold fish bowl” feeling when living or working in high-density buildings such as apartment blocks or office complexes
Reduced fading of carpets, furniture and protect valuable artwork with the advantages of Smart Glass Film
High UV stability
Low working voltage
High video contrast at any viewing angle and any illumination level
Long life – tested to in excess of 3,000,000 cycles gives our Smart Film an incredible advantage over competition

The Many Applications Of Smart Film

Does Smart Film privacy film blocks harmful UV rays?
Yes, It blocks over 98% of the harmful UV rays in both its energized and un-energized state.
Is Smart Film energy efficient?
Yes, It is considered a green product that consumes between 3 and 6 watts per meter squared.
Can customers install Smart Film themselves?
Yes, we offer a complete prewired custom kit.
What is the difference between Smart Film Self Adhesive and Smart Film NON-Adhesive backings?
Smart Film Glass offers a Self Adhesive and a Non-Adhesive switchable privacy film that has the ability to contour to the curves of various types of glass. Smart Film is very popular for projection screens, electronic blinds, white boards, and high tech window treatments. Smart Film switchable privacy film provides maximum clarity when energized and extreme privacy when powered off. The only difference between the two switchable films is that Self Adhesive has a peel and stick backing and or non-adhesive can be installed with a double sided adhesive clear 3m VHB tape.
Smart Film Price?
Every Smart Film project is different and we custom manufacture your material into almost any shape or size, pre-wire, test and send you a ready to install kit with a package price. We have the quickest lead times in the business. We have a price match guarantee!
How can I purchase or get a job quote?
If you would like to get a quote, click the "Smart Film" for a no obligation quote and provide us the details of your project.

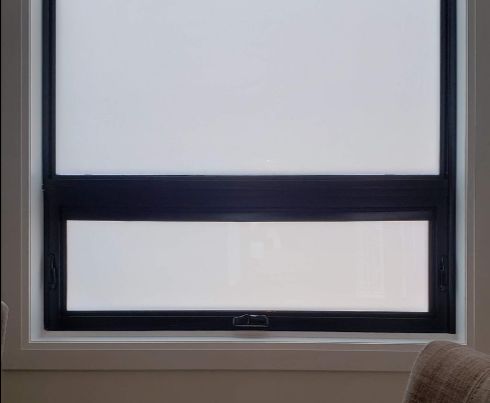

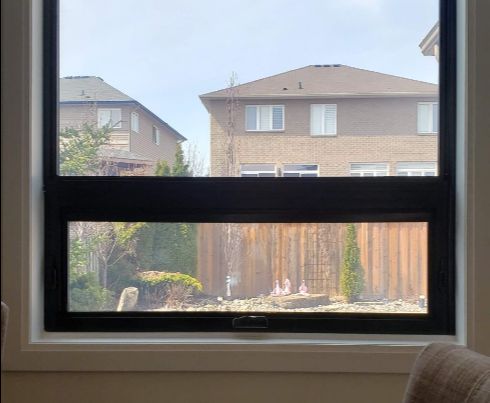

Can Smart Film be installed on the half of the glass only?
Yes, you can install our Smart Film privacy film on the top half or bottom half only if desired.
Is it less expensive than smart glass?
Yes, it is a fraction of the cost and no construction required.
Do you offer Smart Glass?
Yes, our Smart Glass is all custom cut to order. Call for a Free no obligation quote.
Can you project on Smart Film?

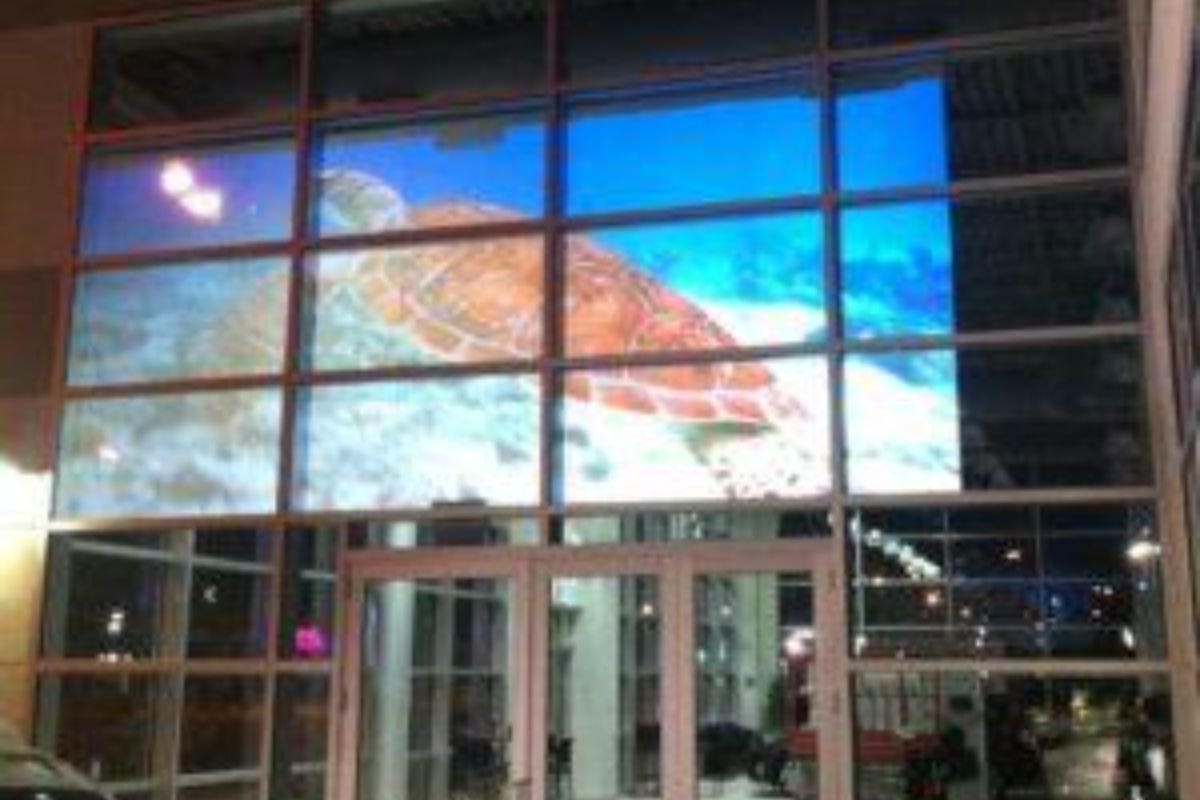

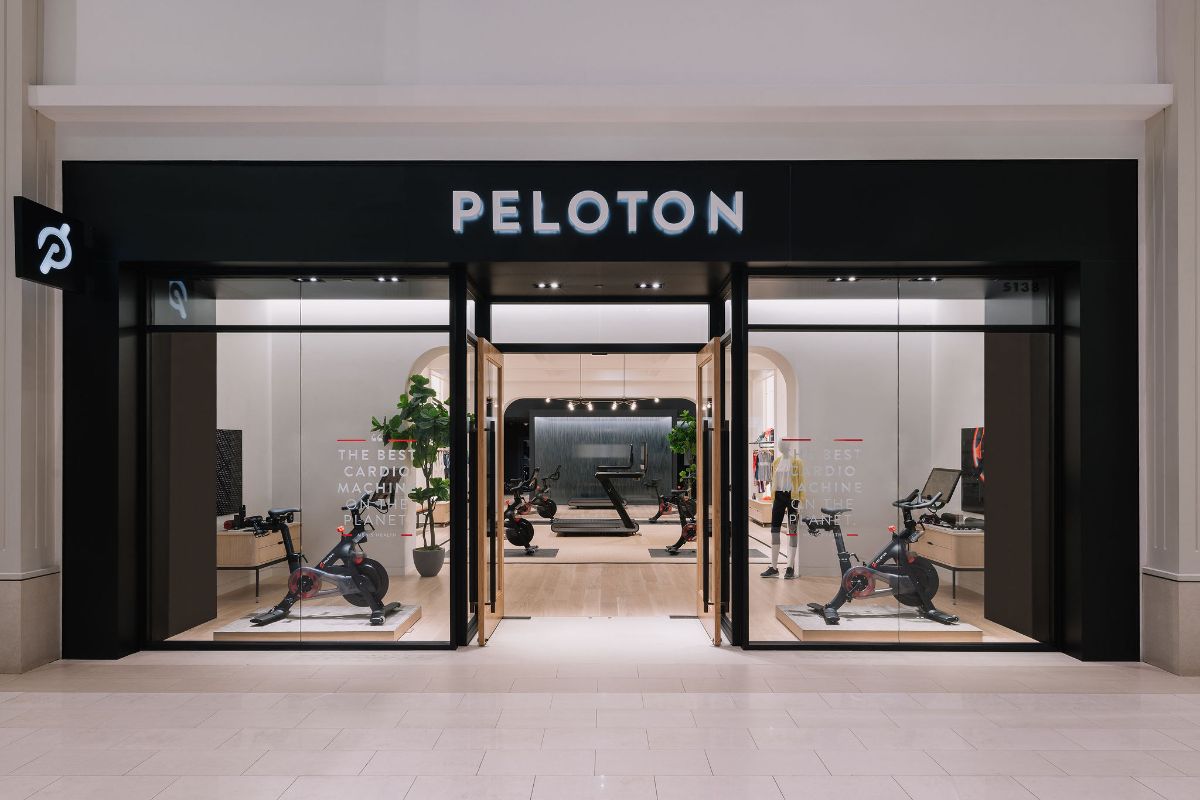

Yes, Smart Film is ideal with its extremely high gain rate to be used as a projection film. We have many happy retail customers that utilize their store glass façade as a video billboard.

Specification of Smart Film

Operating voltage: 42VAC

Frequency: 60 HZ

Ampere: 100mA/ sqm

Power consumption: 4-6W/sqm

Parallel light transmittance: 80% on 10% off
Sunlight transmittance: 80% on 10% off
Haze: 2% on 80% off

Max size: 1500 * 30000 mm

Thickness 0.4mm

Viewing angle: 150 degree

Switch: 3 million times switch on and off

Estimated Life span: 10 years

Sound control 37db

Heat Rejection 40% Off
UV Protection 99% On/Off

*Operating Voltages: 40-60 AC volts standard North American line voltage

*Smart Film Energy use of .07 - .10 Watts/Square Foot

*Temperature tolerance of 13F - 190F

*Quick delivery times

*Our Smart Film is focussed on Quality

* Three colors White, Grey and Black

*Two types of Smart Film Adhesive and

Non-Adhesive

Healthcare

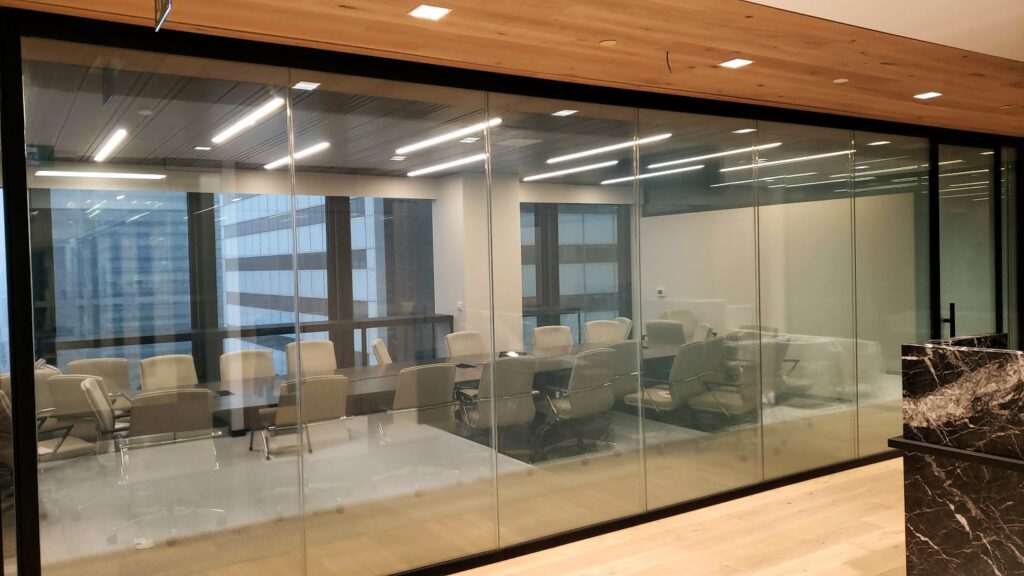

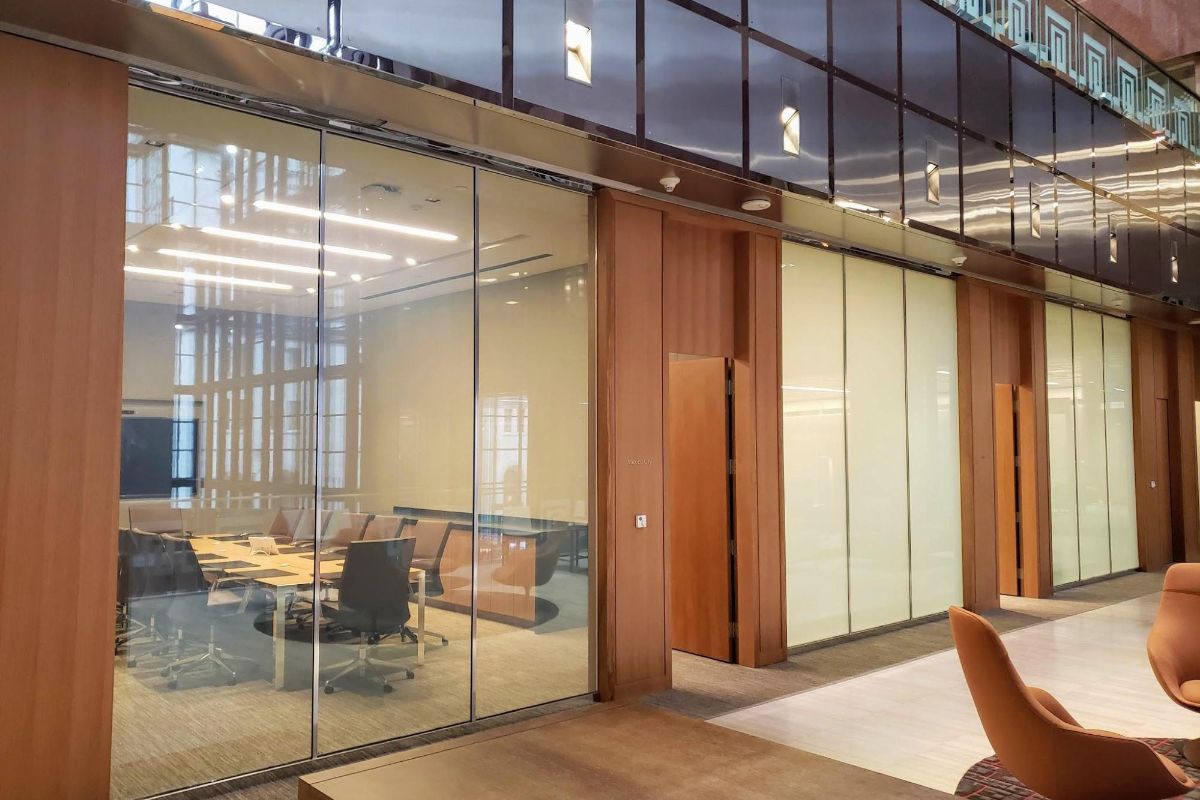

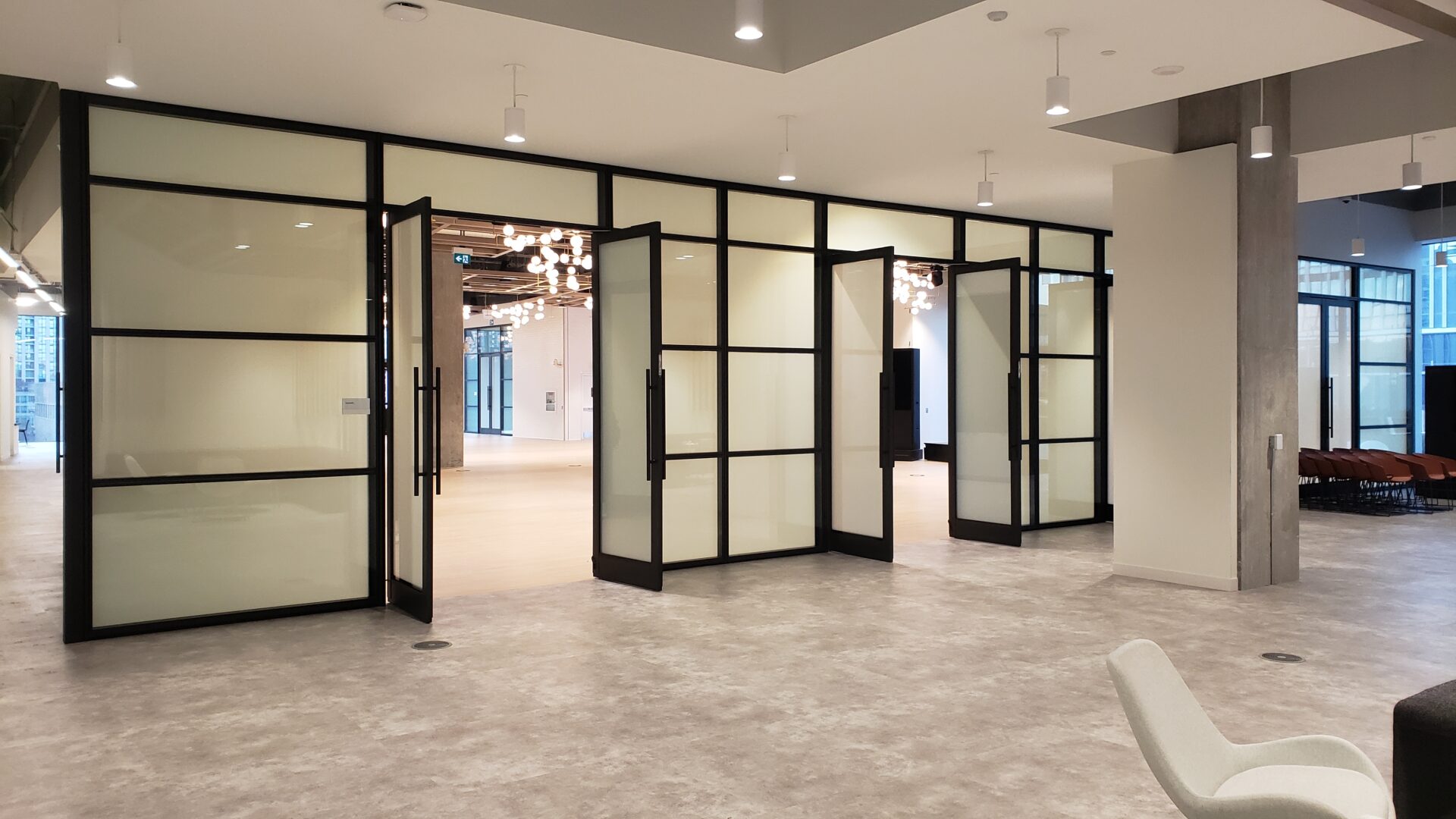

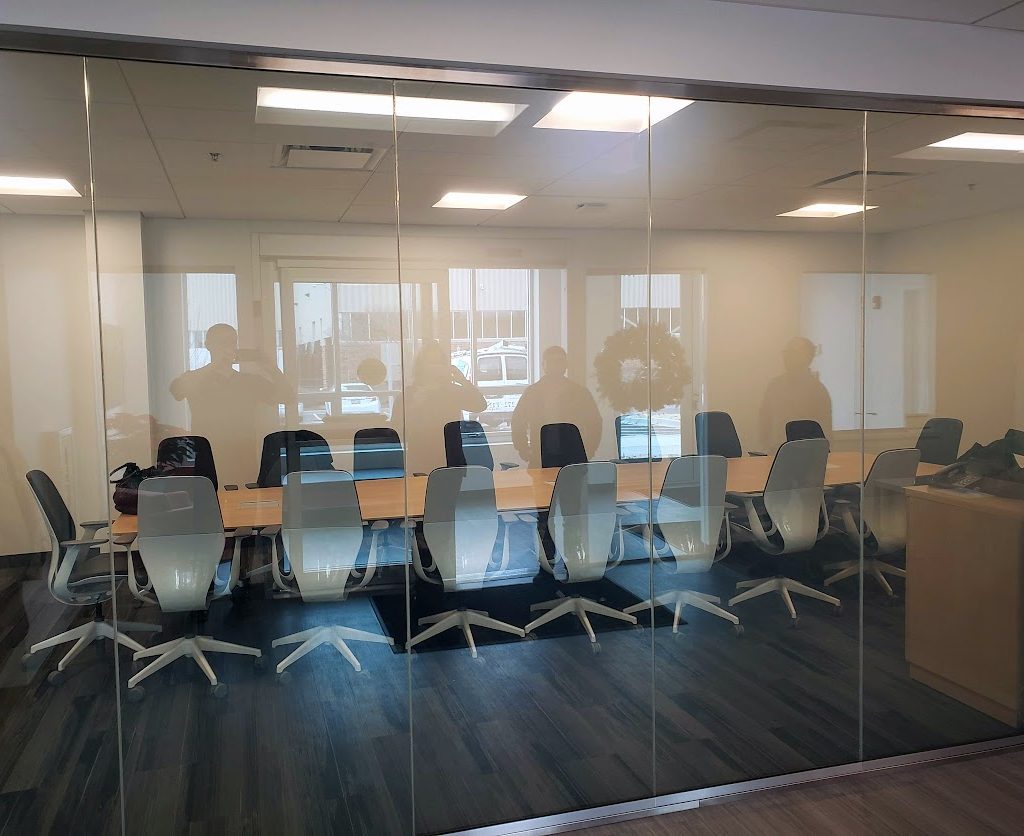

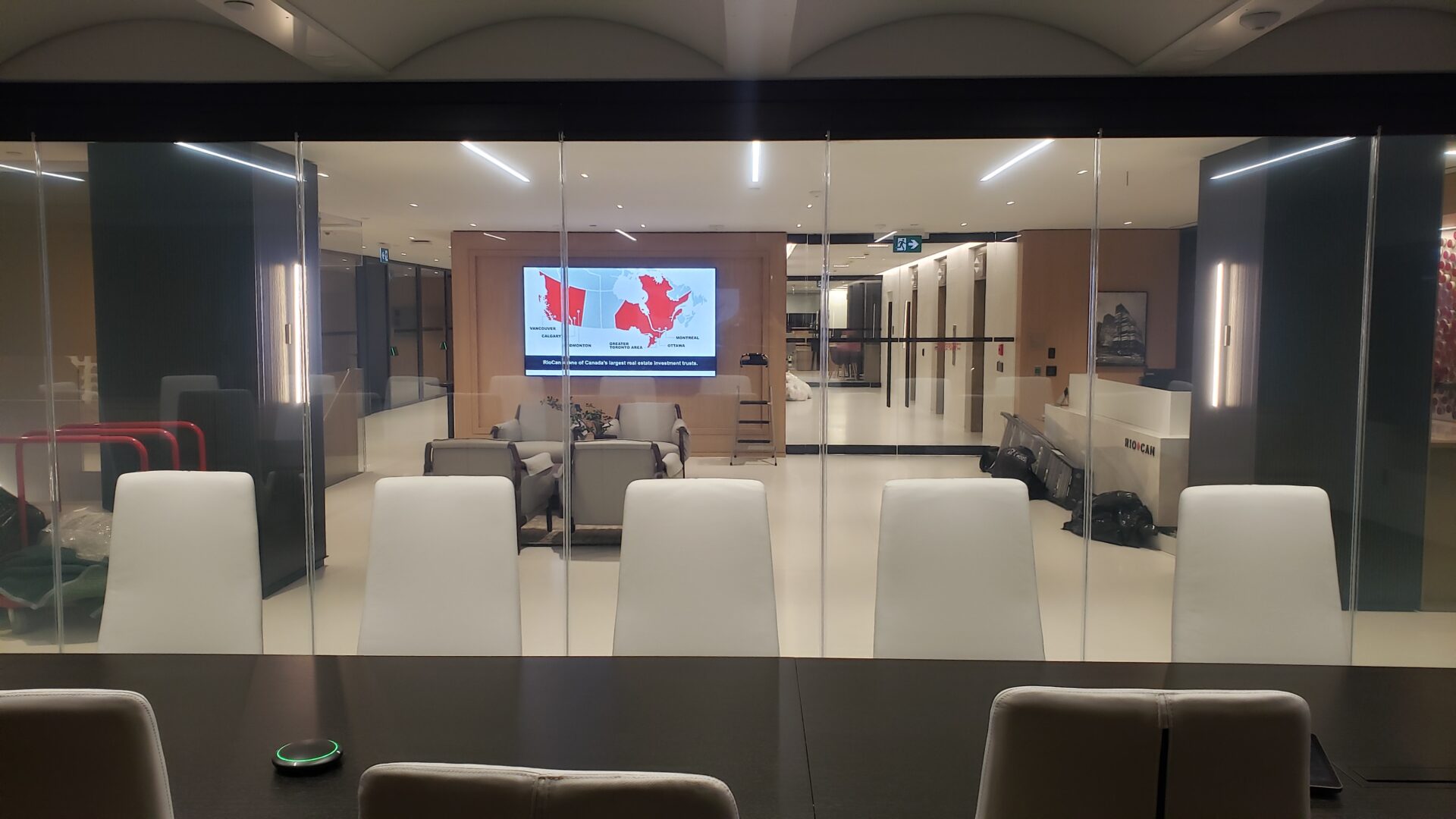

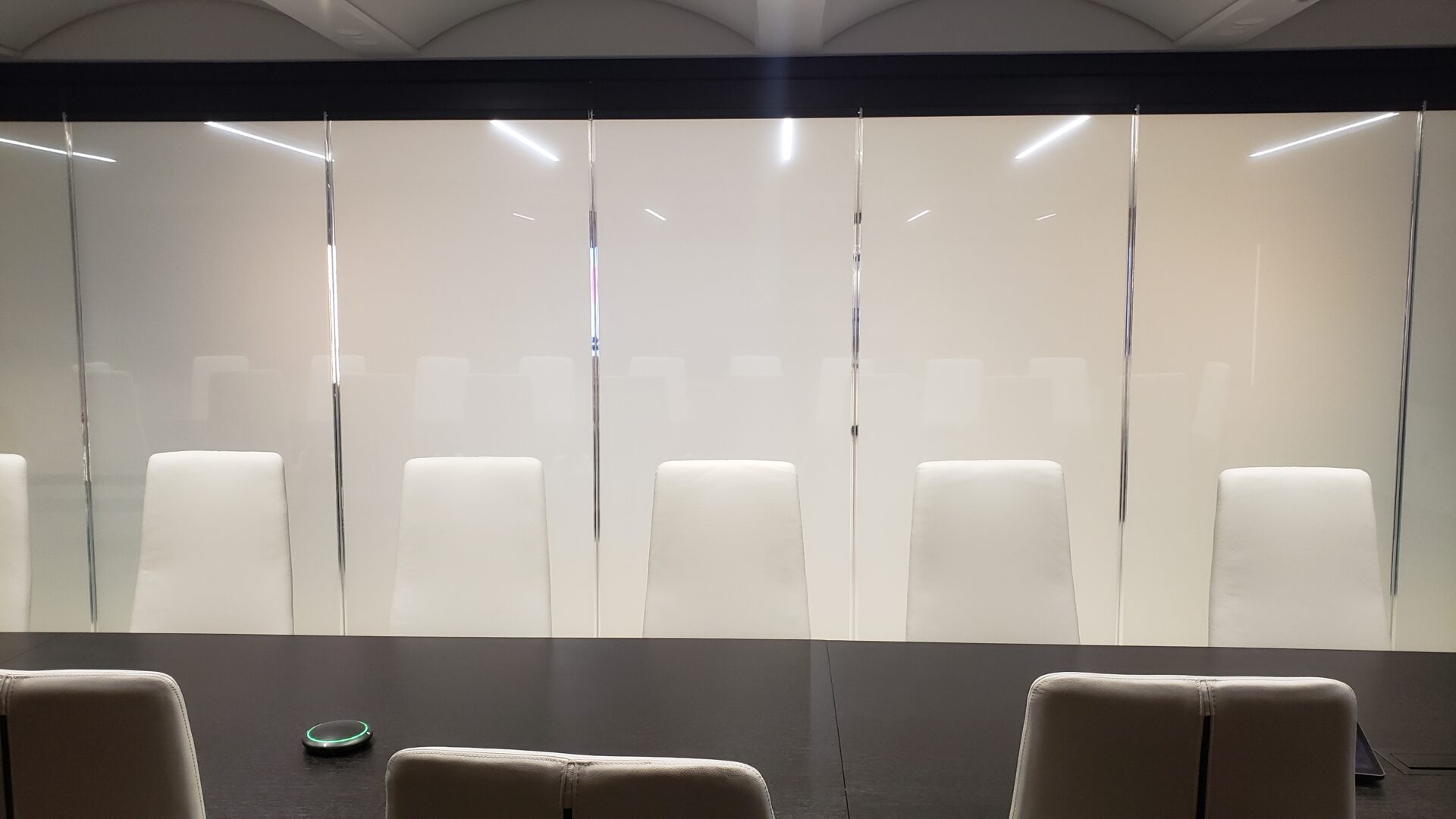

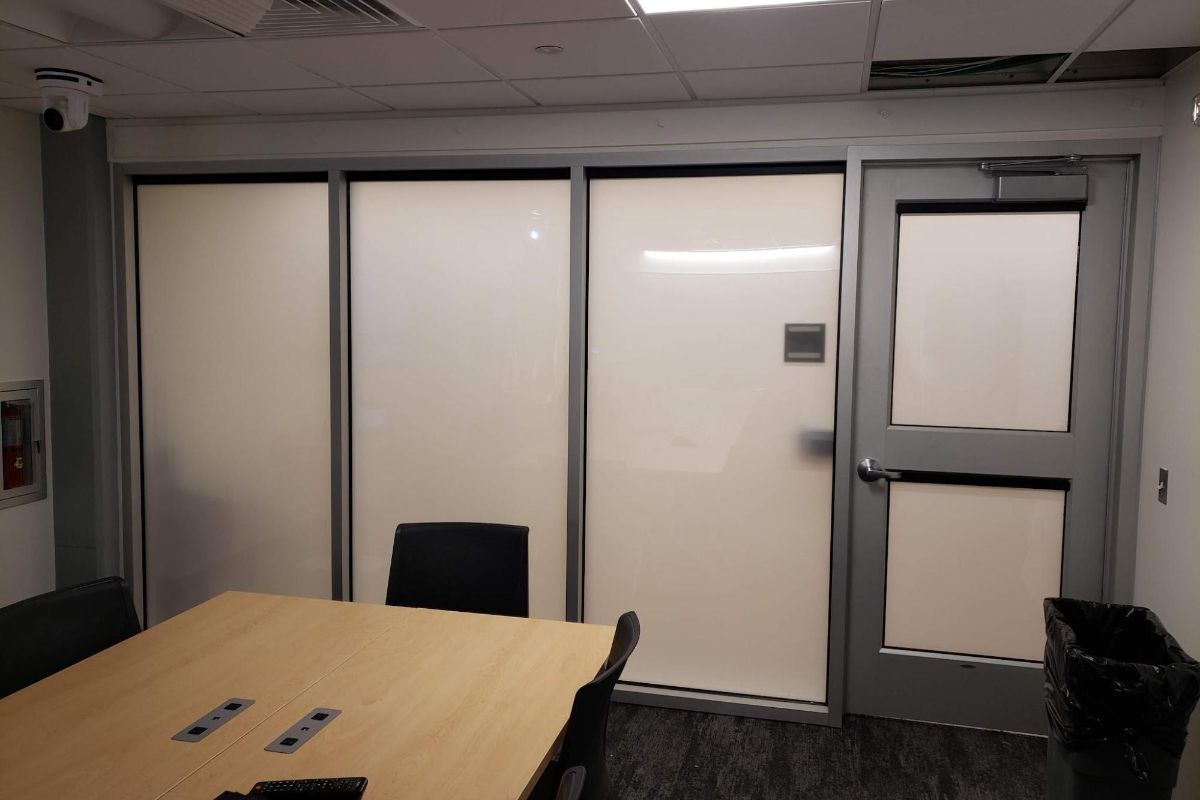

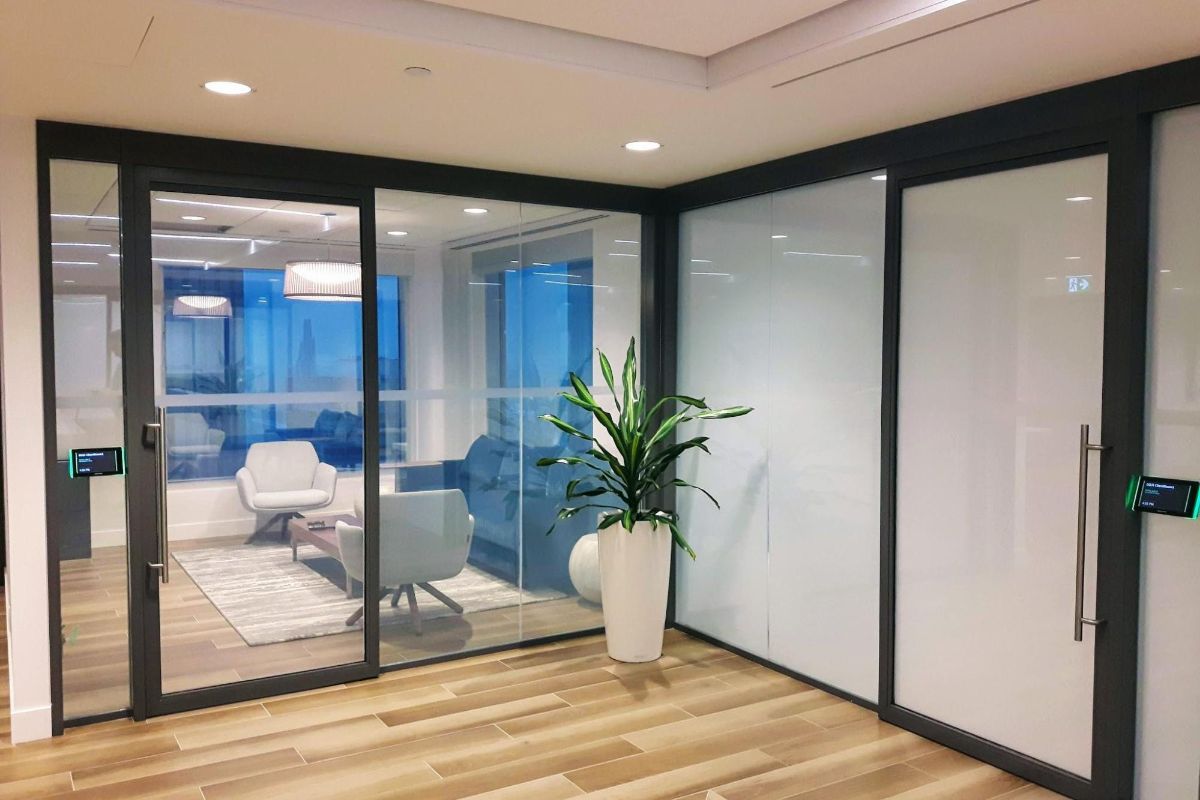

Smart Film applied to the glass of executive offices, conference rooms, store fronts are just

a few of the possibilities.

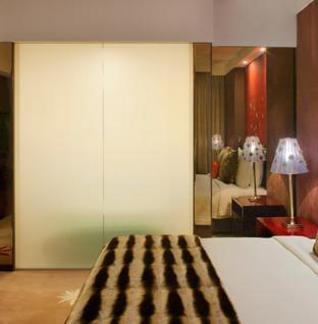

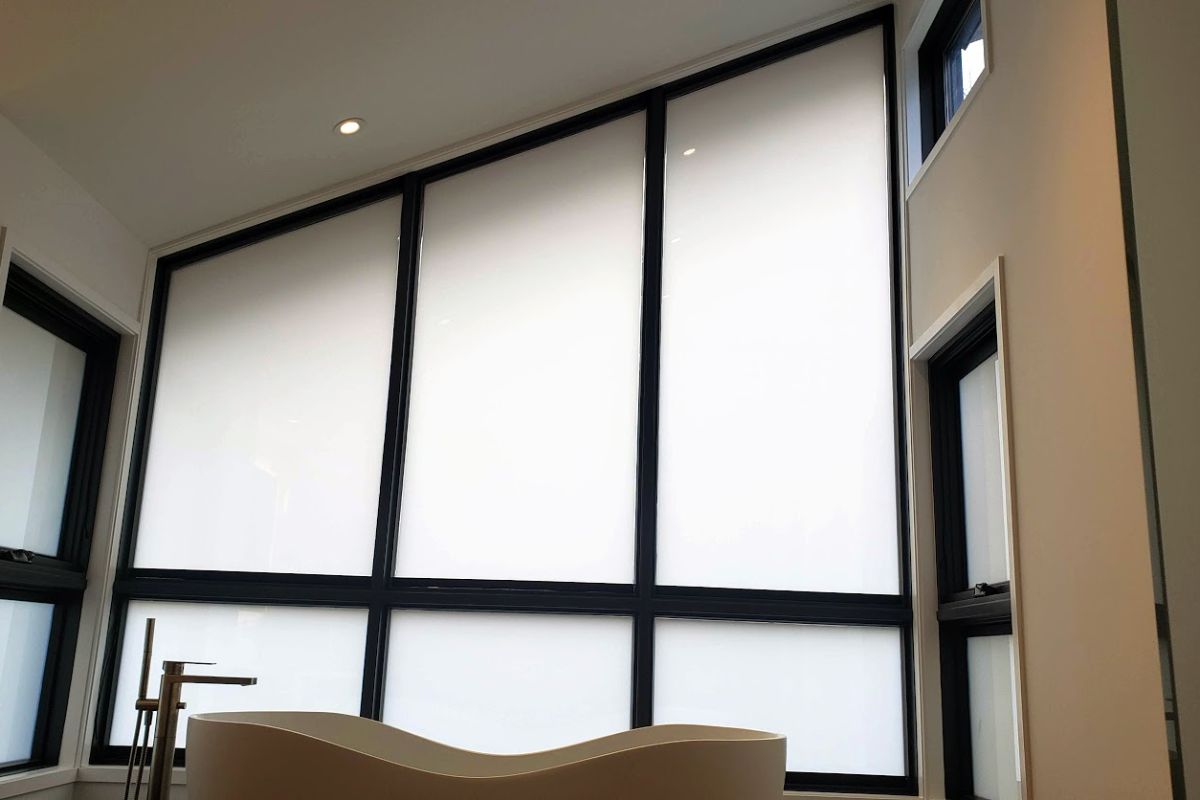

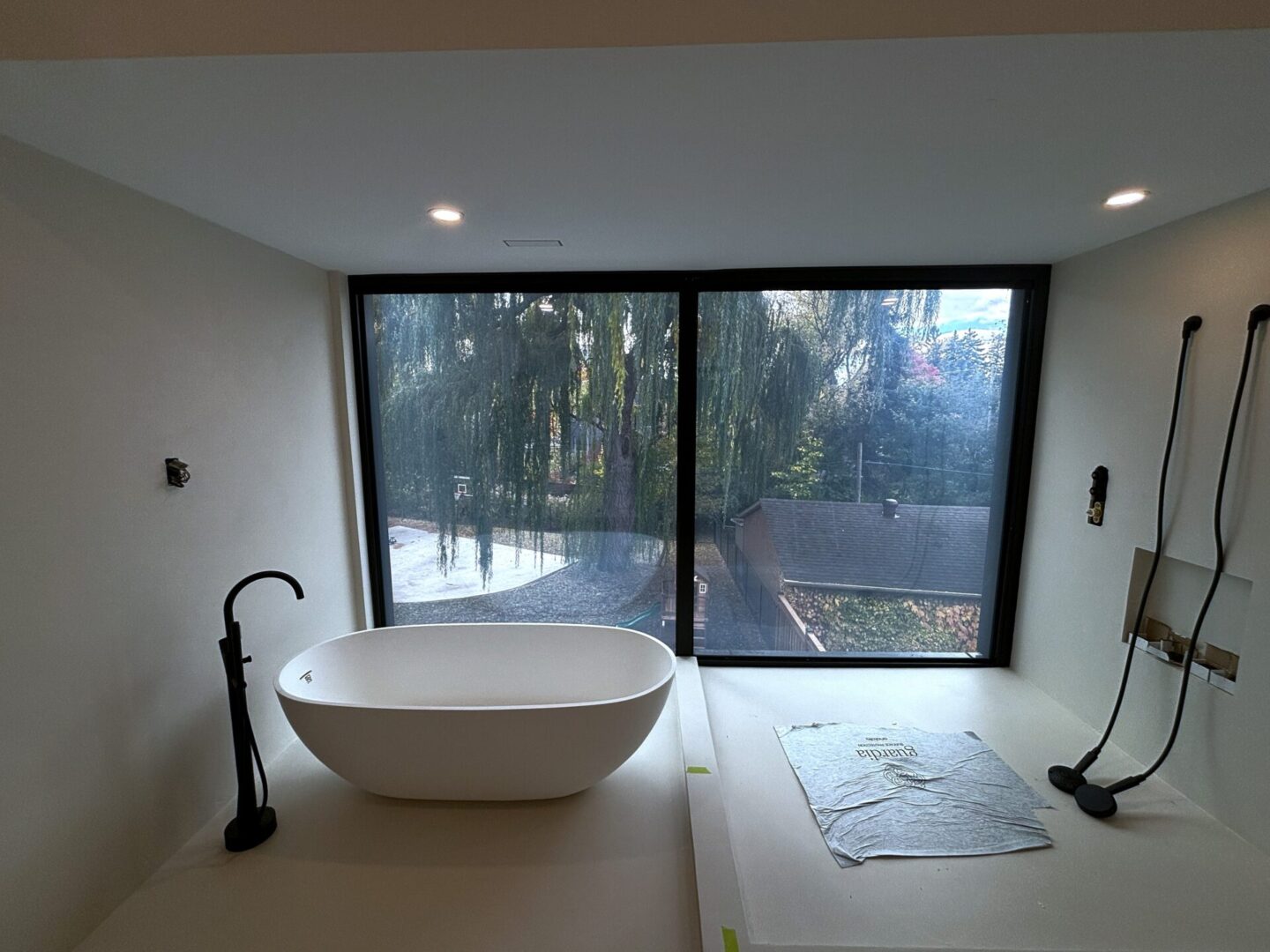

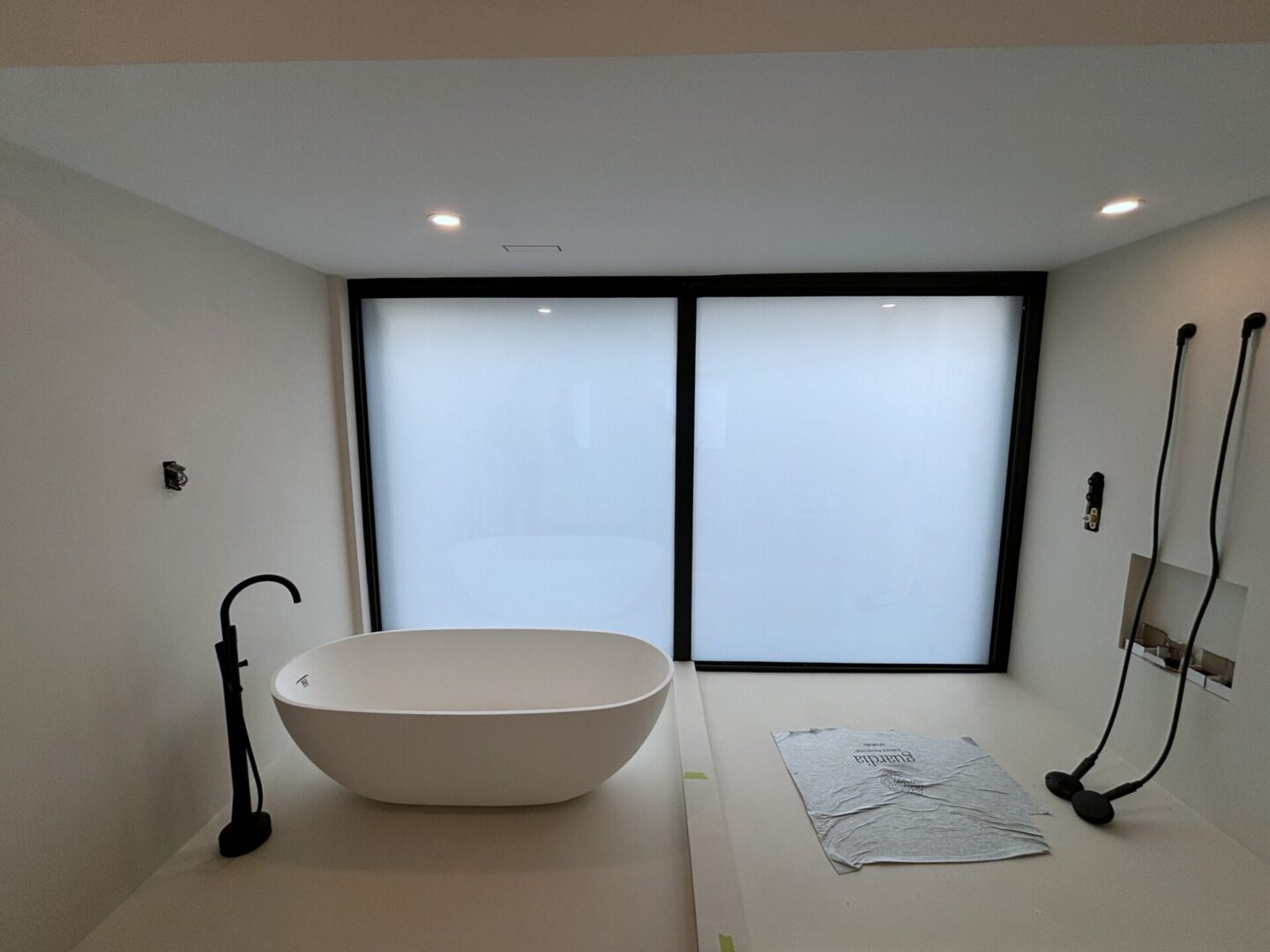

Residential

The Newest in Window Coverings

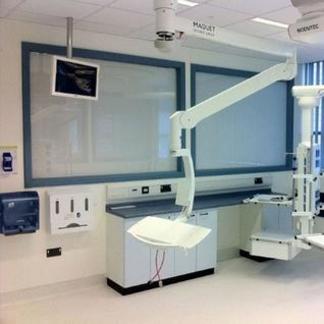

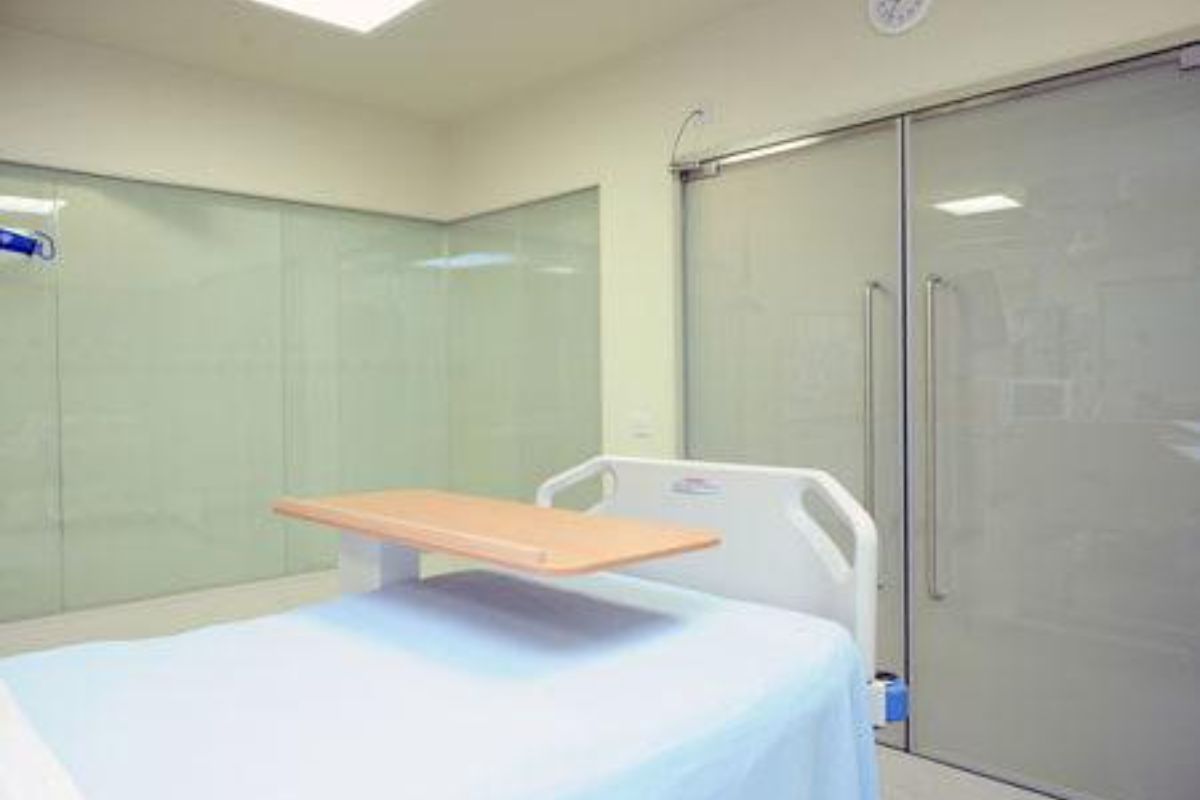

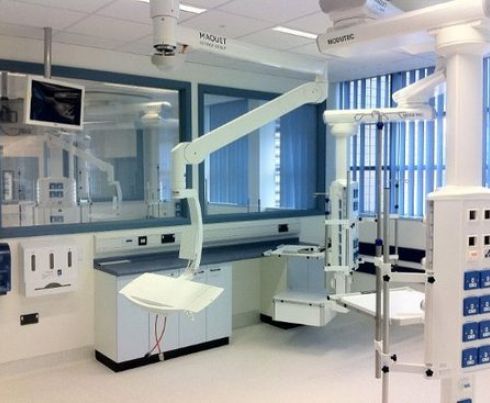

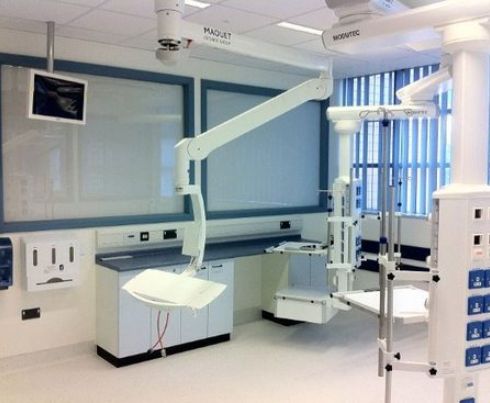

Smart Film applied to existing Healthcare glass can help reduce the transmission of MRSA and VRE pathogens.

Advantages of UL Recognized Smart Film Glass

Smart Film Operating Characteristics

*Our UL Recognized Smart Film switchable film has the highest clarity rate in the business.

*Incredible energy savings from heat and cooling costs by through solar reduction.

*Remarkable rear projection image transfer with our Smart Film

*Fantastic Tech support and engineering troubleshooting.
*Our Smart Film allows for multiple pieces to be configured to operate in unison or independently.
*Variable controllers allow for the full range of light transmission.

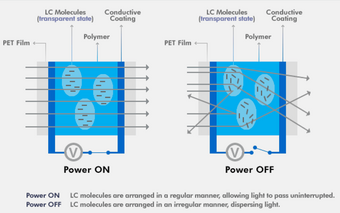

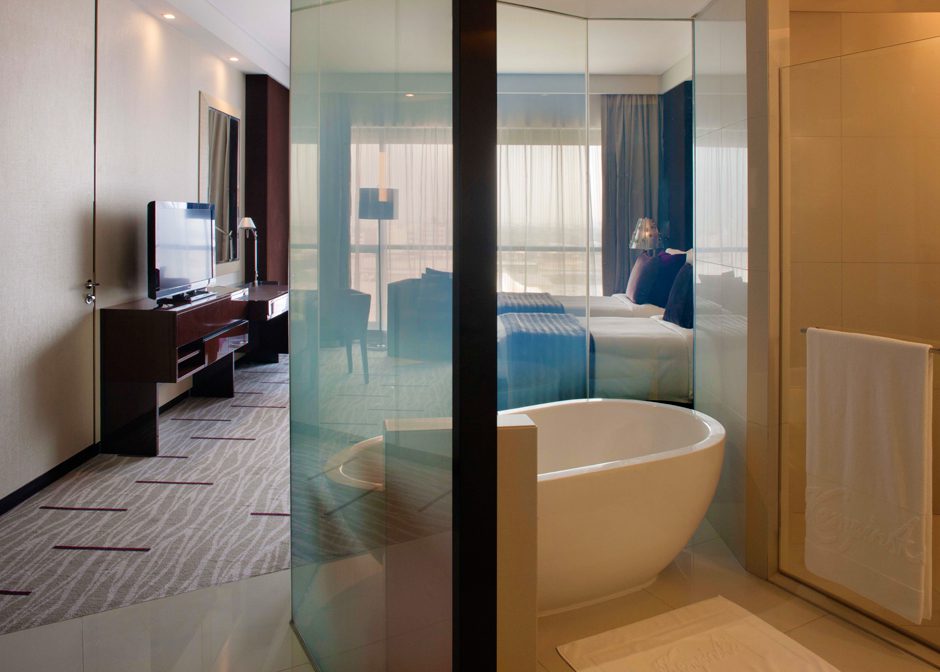

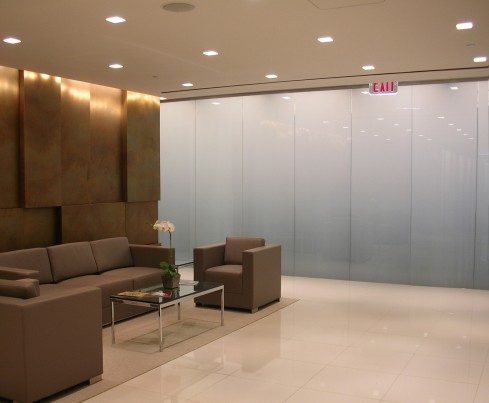

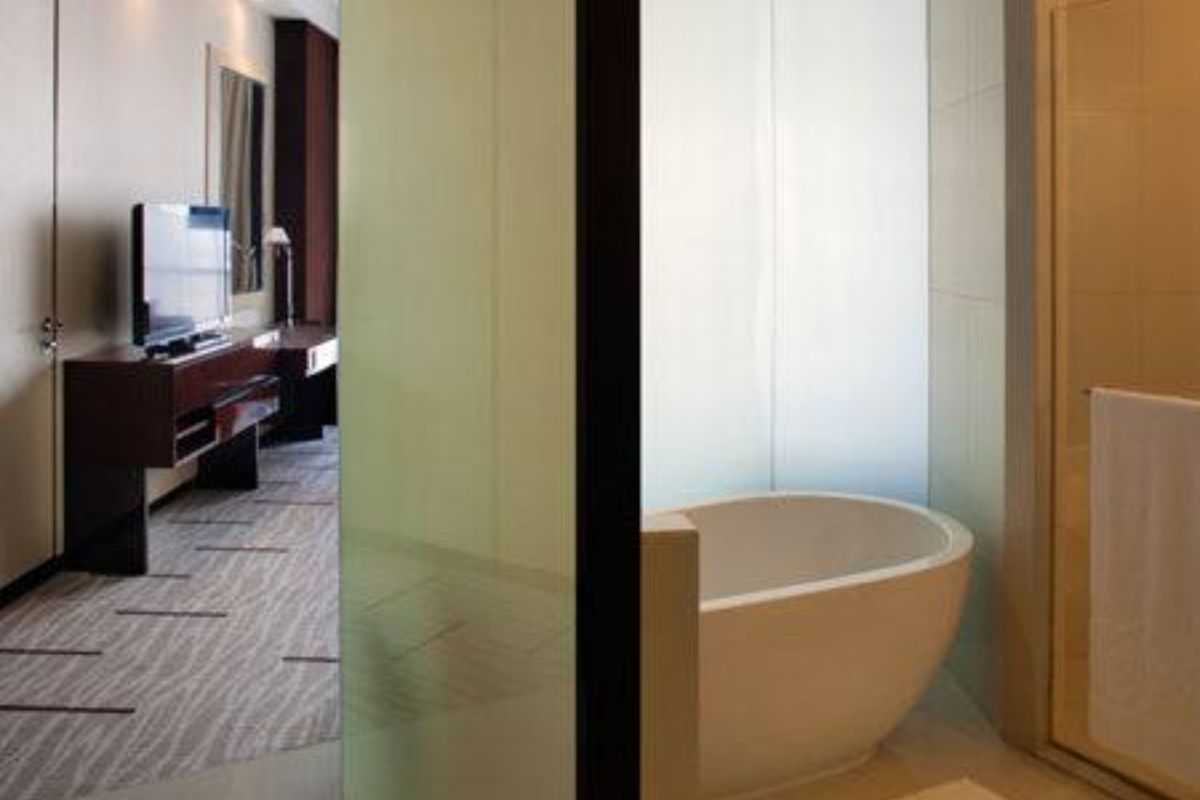

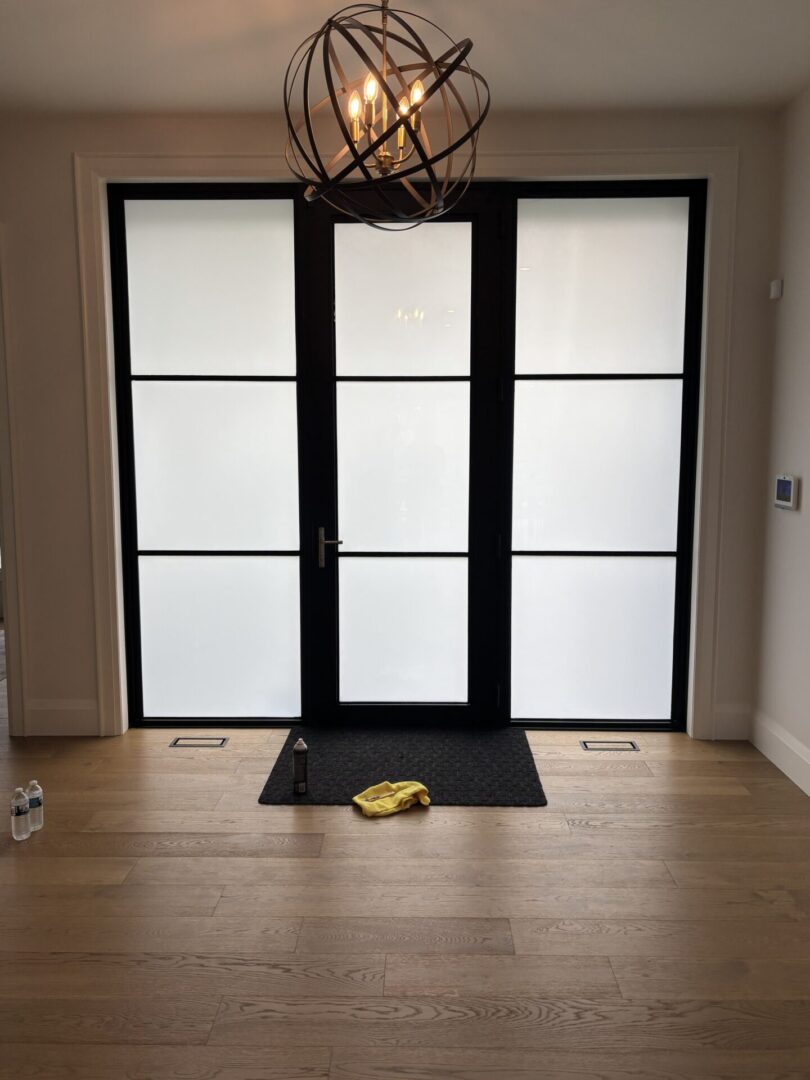

When the power is switched off the liquid crystal molecules are randomly oriented scattering light and the our switchable Smart Film becomes opaque (frosted, private).

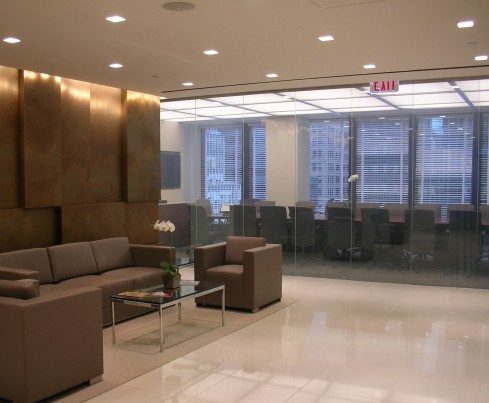

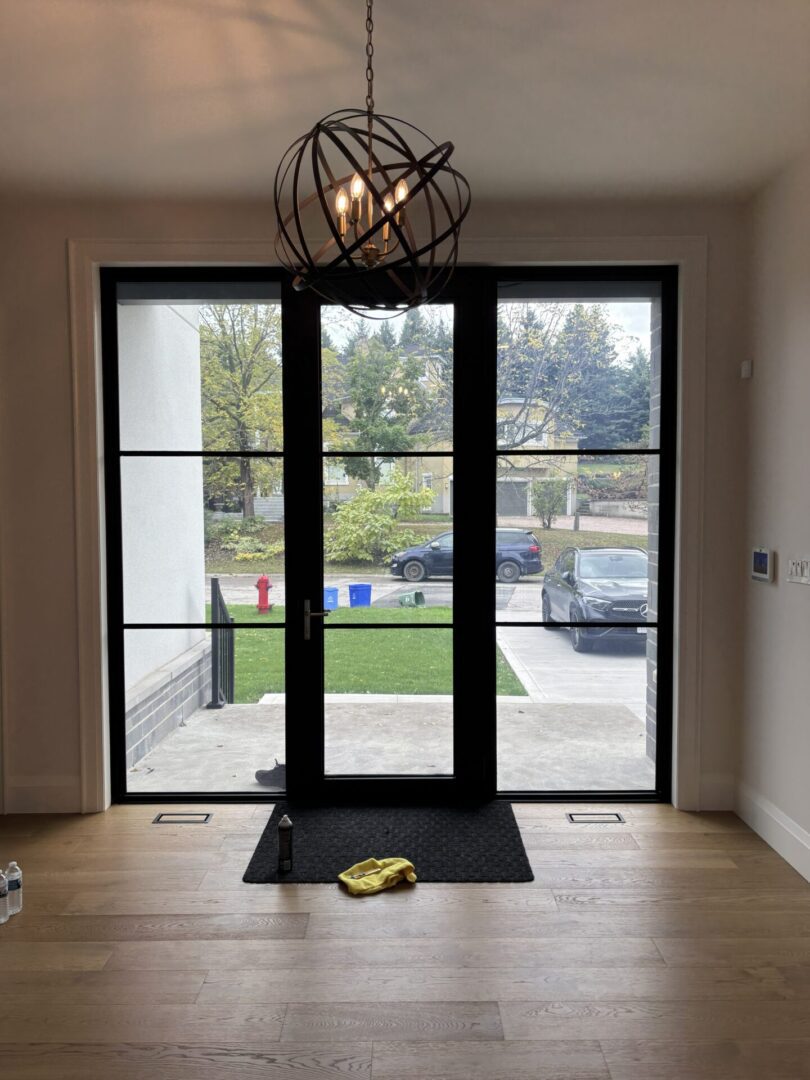

When the small electrical supply is switched on, the liquid crystal molecules align and incident light passes through and the our switchable Smart Film instantly clears (transparent).
